Disston Cross Cut Saws, 1930 Catalog

Updated: 11:47 AM 8/14/2026
Other catalogs used with obtaining information about Disston Saws:
  1. Disston 1919 Catalog "1919"
  2. Disston 1930 Catalog "1930"
  3. Disston 1932 Catalog "1932"

This information came from catalog Disston 1930 Catalog "1930"

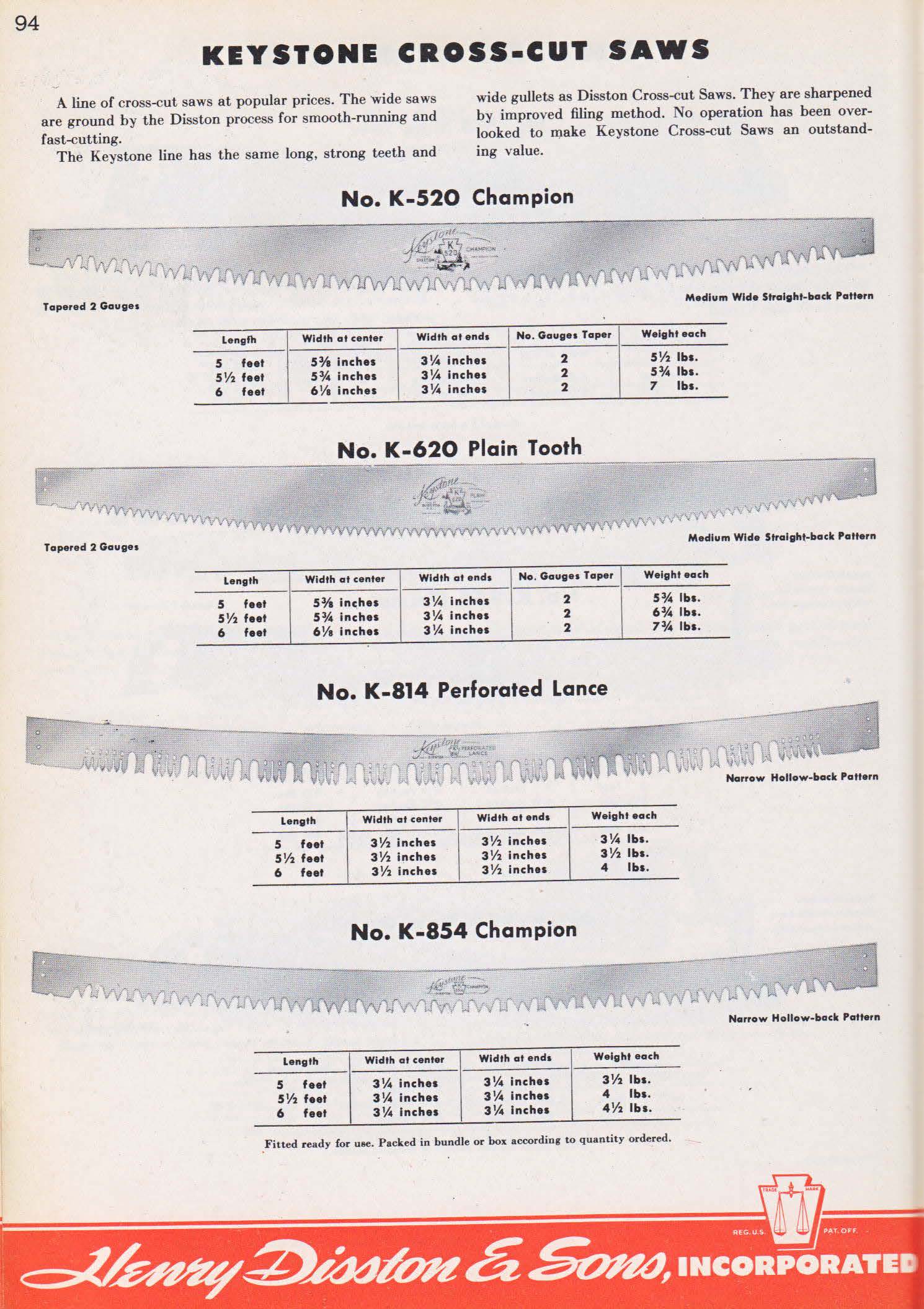

  1. Keystone Two Man Cross Cut Saws, Plain Tooth, Medium Wide Straight Back
    No Catalog Name Length feet Width at Center inches Width at Ends inches Gauge Tooth Edge Gauge Back at Center Gauge at Ends Weight lbs
    K-520 1930 Champion 5 5 3/8 3 1/4 -2 5 1/2
    5 1/2 5 3/4 3 1/4 -2 5 3/4
    6 6 1/8 3 1/4 -2 7
  2. Keystone Two Man Cross Cut Saws, Plain Tooth, Medium Wide Straight Back
    No Catalog Name Length feet Width at Center inches Width at Ends inches Gauge Tooth Edge Gauge Back at Center Gauge at Ends Weight lbs
    K-620 1930 Plain Tooth 5 5 3/8 3 1/4 -2 5 3/4
    5 1/2 5 3/8 3 1/4 -2 6 3/4
    6 6 1/8 3 1/4 -2 7 3/4
  3. Keystone Two Man Cross Cut Saws, Plain Tooth, Narrow Hollow Back
    No Catalog Name Length feet Width at Center inches Width at Ends inches Gauge Tooth Edge Gauge Back at Center Gauge at Ends Weight lbs
    K-814 1930 Perforated Lance 5 3 1/2 3 1/2 3 1/4
    5 1/2 3 1/2 3 1/2 3 1/2
    6 3 1/2 3 1/2 4
  4. Keystone Two Man Cross Cut Saws, Plain Tooth, Narrow Hollow Back
    No Catalog Name Length feet Width at Center inches Width at Ends inches Gauge Tooth Edge Gauge Back at Center Gauge at Ends Weight lbs
    K-854 1930 Champion 5 3 1/4 3 1/4 3 1/2
    5 1/2 3 1/4 3 1/4 4
    6 3 1/4 3 1/4 4 1/2
  5. Keystone One Man Cross Cut Saws
    No Catalog Name Length feet Width at Butt Inches Width at point Inches Gauge Tooth Edge Gauge at Back Gauge at Ends Weight lbs
    K-954 1930 Champion 3 6 2 1/8 3 1/2
    3 1/2 6 1/4 2 1/4 3 3/4
    4 6 1/2 2 3/4 5 1/2
    4 1/2 6 3/4 2 1/2 6 3/4
  6. Keystone One Man Cross Cut Saws
    No Catalog Name Length feet Width at Butt Inches Width at point Inches Gauge Tooth Edge Gauge at Back Gauge at Ends Weight lbs
    K-964 1930 Plain Tooth 3 6 2 1/8 3 1/2
    3 1/2 6 1/4 2 1/4 4 1/2
    4 6 1/2 2 3/8 6

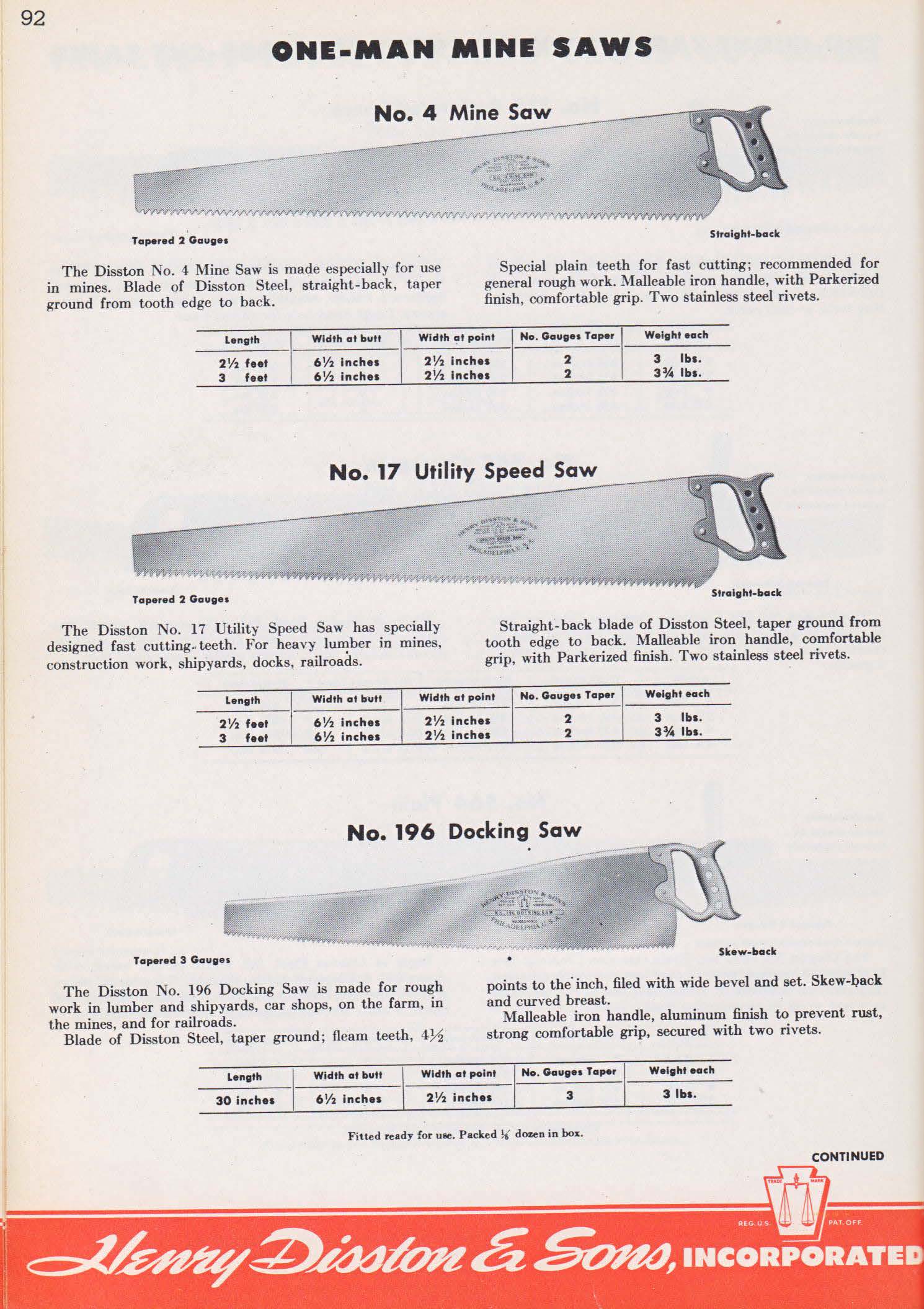

  7. One Man Cross Cut Saws
    No Catalog Name Length feet Width at Butt Inches Width at point Inches Gauge Tooth Edge Gauge at Back Gauge at Ends Weight lbs
    4 1930 Mine Saw 2 1/2 6 1/2 2 1/2 -2 3
    3 6 1/2 2 1/2 -2 3 3/4

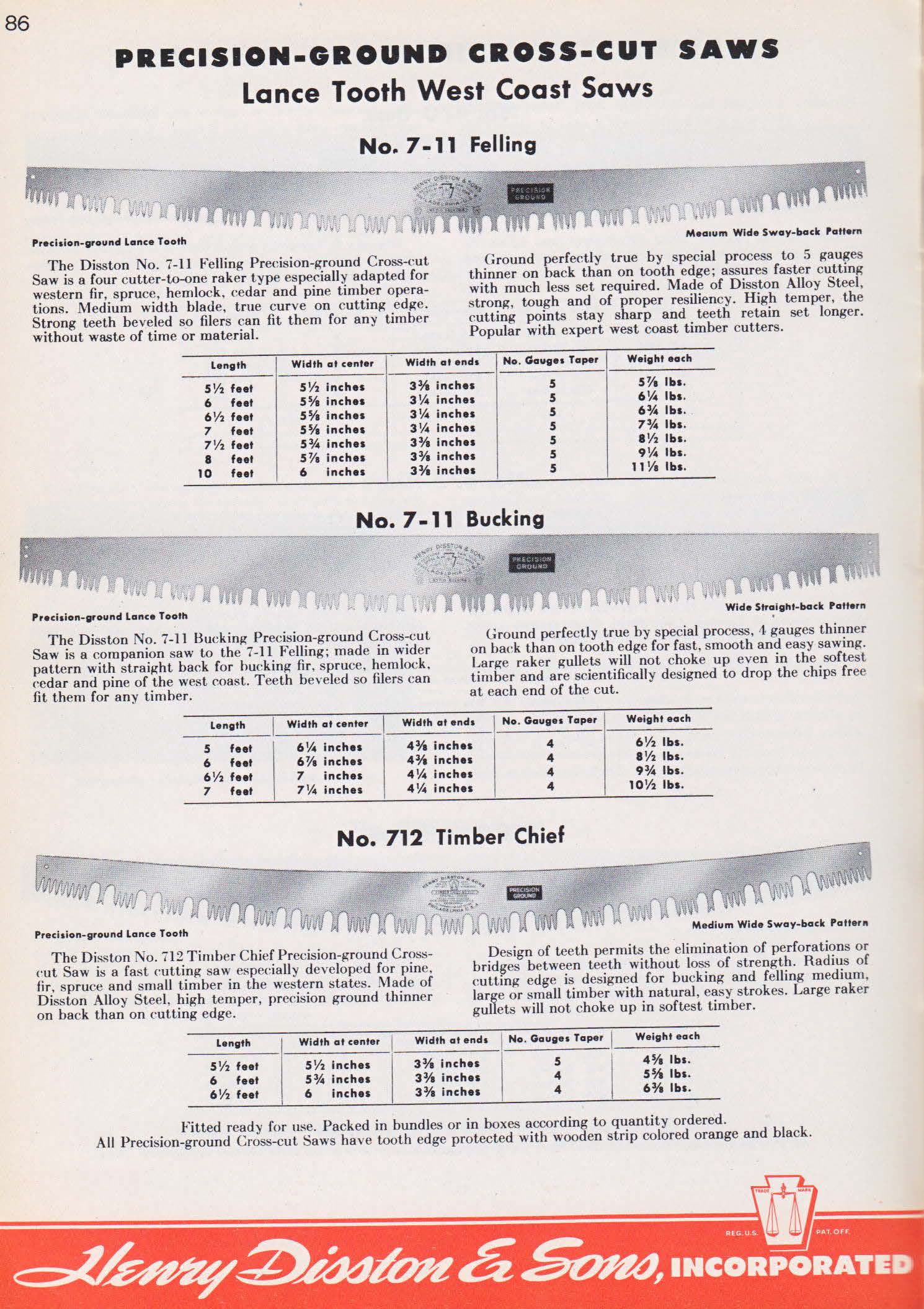

  8. Two Man Cross Cut Saws, Precision-Ground, Lance Tooth, Medium Sway-back
    No Catalog Name Length feet Width at Center inches Width at Ends inches Gauge Tooth Edge Gauge Back at Center Gauge at Ends Weight lbs
    7-11 1930 Felling 5 1/2 5 1/2 3 3/8 -5 5 7/8
    6 5 5/8 3 1/4 -5 6 1/4
    6 1/2 5 5/8 3 1/4 -5 6 3/4
    7 5 5/8 3 1/4 -5 7 3/4
    7 1/2 5 3/4 3 3/8 -5 8 1/2
    8 5 7/8 3 3/8 -5 9 1/4
    10 6 3 3/8 -5 11 1/18
  9. Two Man Cross Cut Saws, Precision-Ground, Perforated Lance, Wide Straight-back
    No Catalog Name Length feet Width at Center inches Width at Ends inches Gauge Tooth Edge Gauge Back at Center Gauge at Ends Weight lbs
    7-11 1930 Bucking 5 6 1/4 4 3/8 -4 6 1/2
    6 6 7/8 4 3/8 -4 8 1/2
    6 1/2 7 4 1/4 -4 9 3/4
    7 7 1/4 4 1/2 -4 10 1/2
  10. One Man Saws
    No Catalog Name Length feet Width at Butt Inches Width at point Inches Gauge Tooth Edge Gauge at Back Gauge at Ends Weight lbs
    17 1930 Utility Speed Saw 2 1/2 6 1/2 2 1/2 -2 3
    3 6 1/2 2 1/2 -2 3 3/4

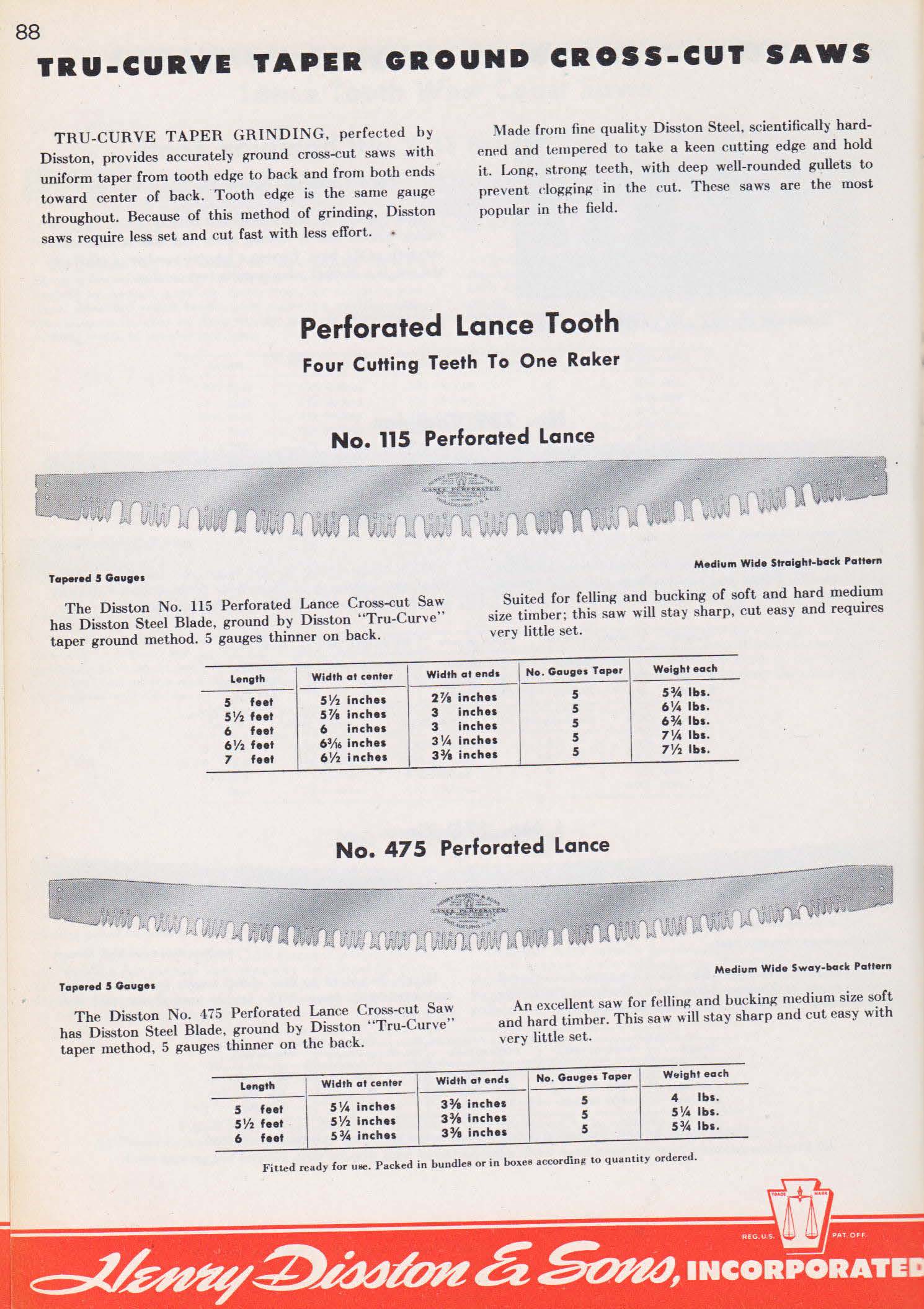

  11. Two Man Tru-Curve Taper Ground Cross Cut Saws, Perforated Lance, Medium Wide Straight-back
    No Catalog Name Length feet Width at Center inches Width at Ends inches Gauge Tooth Edge Gauge Back at Center Gauge at Ends Weight lbs
    115 1930 Perforated Lance 5 5 1/2 2 7/8 -5 5 3/4
    5 1/2 5 7/8 3 -5 6 1/4
    6 6 3 -5 6 3/4
    6 1/2 6 3/16 3 1/4 -5 7 1/4
    7 6 1/2 3 3/8 -5 7 1/2

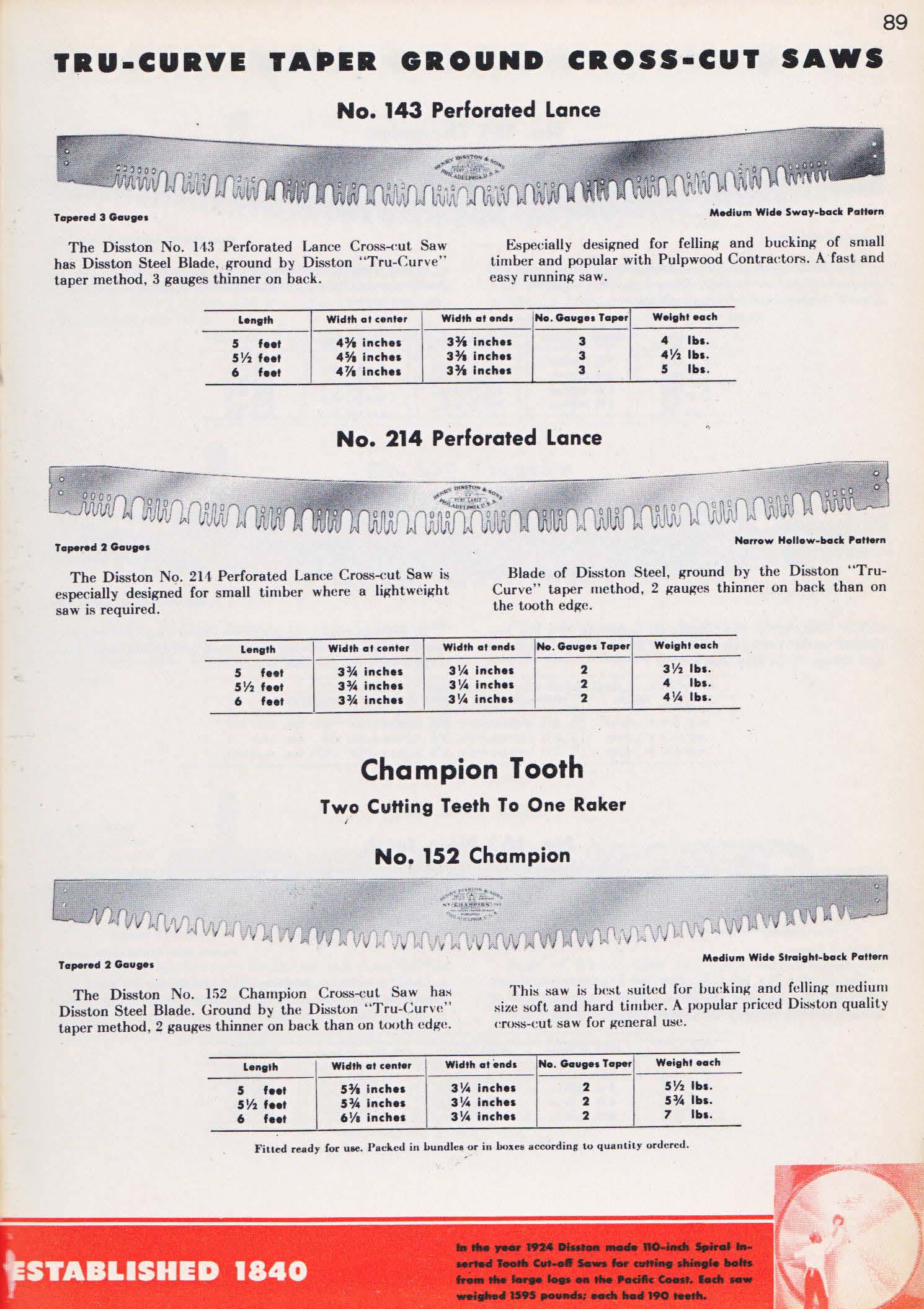

  12. Two Man Tru-Curve Taper Ground Cross Cut Saws, Perforated Lance, Medium Wide Sway Back
    No Catalog Name Length feet Width at Center inches Width at Ends inches Gauge Tooth Edge Gauge Back at Center Gauge at Ends Weight lbs
    143 1930 Perforated Lance 5 4 3/8 3 3/8 -3 4
    5 1/2 4 5/8 3 3/8 -3 4 1/2
    6 4 7/8 3 3/8 -3 5
  13. Two Man Tru-Curve Taper Ground Cross Cut Saws, Champion Tooth, Medium Wide Straight Back
    No Catalog Name Length feet Width at Center inches Width at Ends inches Gauge Tooth Edge Gauge Back at Center Gauge at Ends Weight lbs
    152 1930 Champion 5 5 3/8 3 1/4 -2 5 1/2
    5 1/2 5 3/4 3 1/4 -2 5 3/4
    6 6 1/8 3 1/4 -2 7

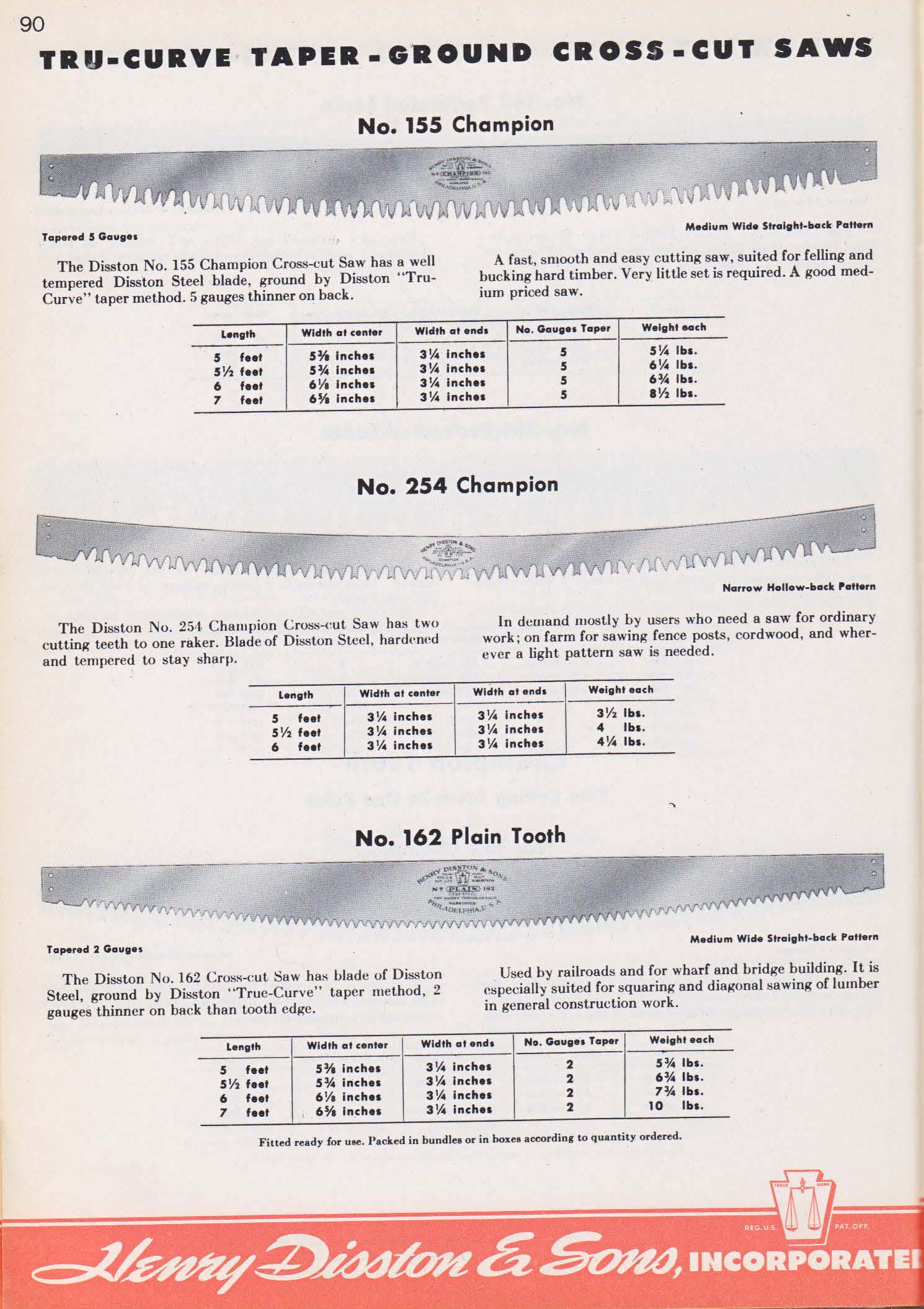

  14. Two Man Tru-Curve Taper Ground Cross Cut Saws, Champion Tooth, Medium Wide Straight Back
    No Catalog Name Length feet Width at Center inches Width at Ends inches Gauge Tooth Edge Gauge Back at Center Gauge at Ends Weight lbs
    155 1930 Champion 5 5 3/8 3 1/4 -5 5 1/4
    5 1/2 5 3/4 3 1/4 -5 6 1/4
    6 6 1/8 3 1/4 -5 6 3/4
    7 6 5/8 3 1/4 -5 8 1/2
  15. Two Man Tru-Curve Taper Ground Cross Cut Saws, Plain Tooth, Medium Wide Straight Back
    No Catalog Name Length feet Width at Center inches Width at Ends inches Gauge Tooth Edge Gauge Back at Center Gauge at Ends Weight lbs
    162 1930 Plain Tooth 5 5 3/8 3 1/4 -2 5 3/4
    5 1/2 5 3/4 3 1/4 -2 6 3/4
    6 6 1/8 3 1/4 -2 7 3/4
    7 6 5/8 3 1/4 -2 10
  16. One Man Saws
    No Catalog Name Length feet Width at Butt Inches Width at point Inches Gauge Tooth Edge Gauge at Back Gauge at Ends Weight lbs
    196 1930 Docking Saw 2 1/2 6 1/2 2 1/2 -3 3
  17. Two Man Tru-Curve Taper Ground Cross Cut Saws, Perforated Lance, Medium Wide Sway Back
    No Catalog Name Length feet Width at Center inches Width at Ends inches Gauge Tooth Edge Gauge Back at Center Gauge at Ends Weight lbs
    214 1930 Perforated Lance 5 3 3/4 3 1/4 -2 3 1/2
    5 1/2 3 3/4 3 1/4 -2 4
    6 3 3/4 3 1/4 -2 4 1/2
  18. Two Man Tru-Curve Taper Ground Cross Cut Saws, Champion Tooth, Narrow Hollow-Back
    No Catalog Name Length feet Width at Center inches Width at Ends inches Gauge Tooth Edge Gauge Back at Center Gauge at Ends Weight lbs
    254 1930 Champion 5 3 1/4 3 1/4 3 1/2
    5 1/2 3 1/4 3 1/4 4
    6 3 1/4 3 1/4 4 1/2

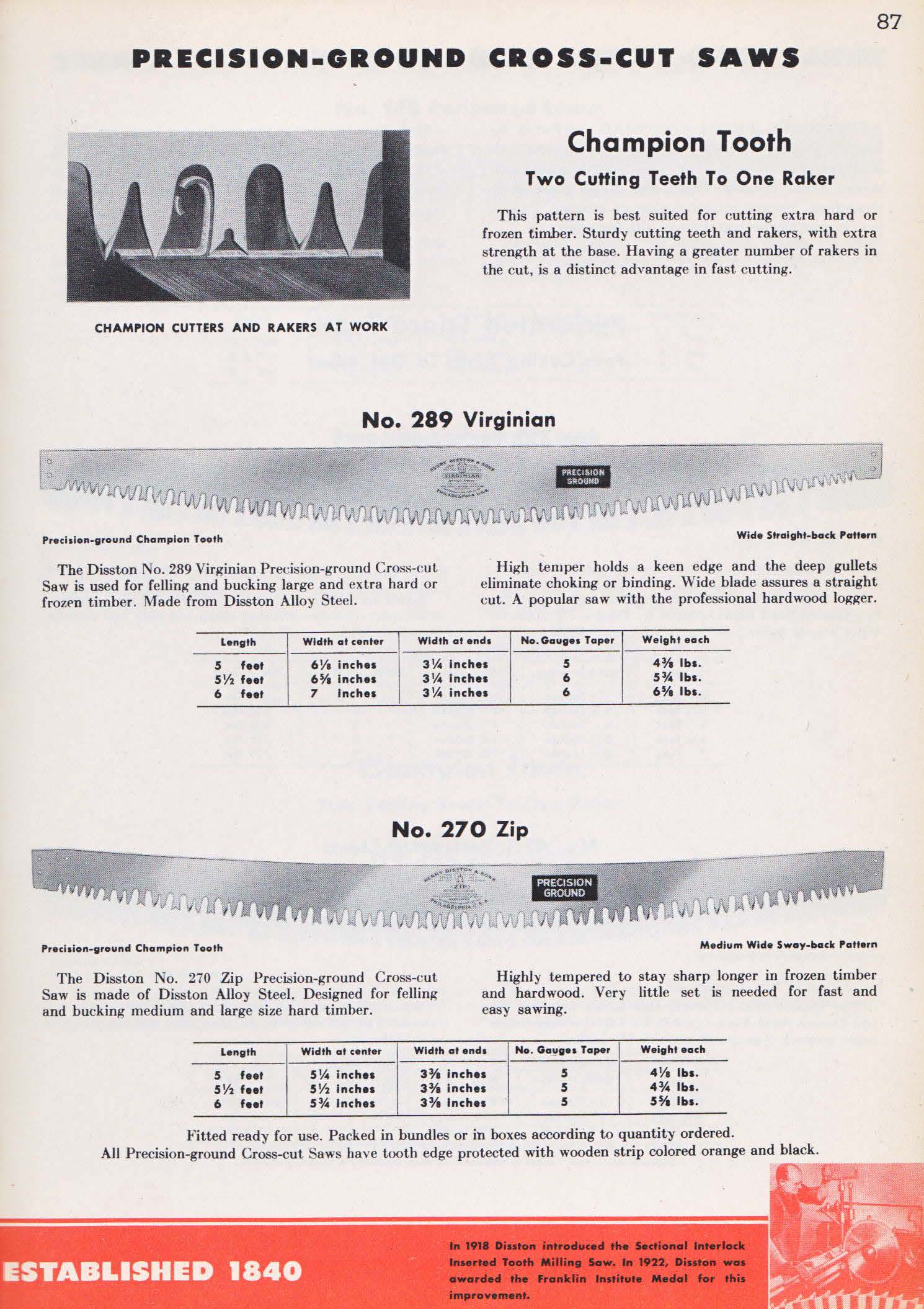

  19. Two Man Cross Cut Saws, Precision-Ground, Champion Tooth, Medium Wide Sway-Back
    No Catalog Name Length feet Width at Center inches Width at Ends inches Gauge Tooth Edge Gauge Back at Center Gauge at Ends Weight lbs
    270 1930 Zip 5 5 1/4 3 3/8 -5 4 1/8
    5 1/4 5 1/2 3 3/8 -5 4 3/4
    6 5 3/4 3 3/8 -5 5 5/8
  20. Two Man Cross Cut Saws, Precision-Ground, Champion Tooth, Wide Straight-Back
    No Catalog Name Length feet Width at Center inches Width at Ends inches Gauge Tooth Edge Gauge Back at Center Gauge at Ends Weight lbs
    289 1930 Virginian 5 6 1/8 3 1/4 -5 4 3/8
    5 1/2 6 5/8 3 1/4 -6 5 3/4
    6 7 3 1/4 -6 6 5/6

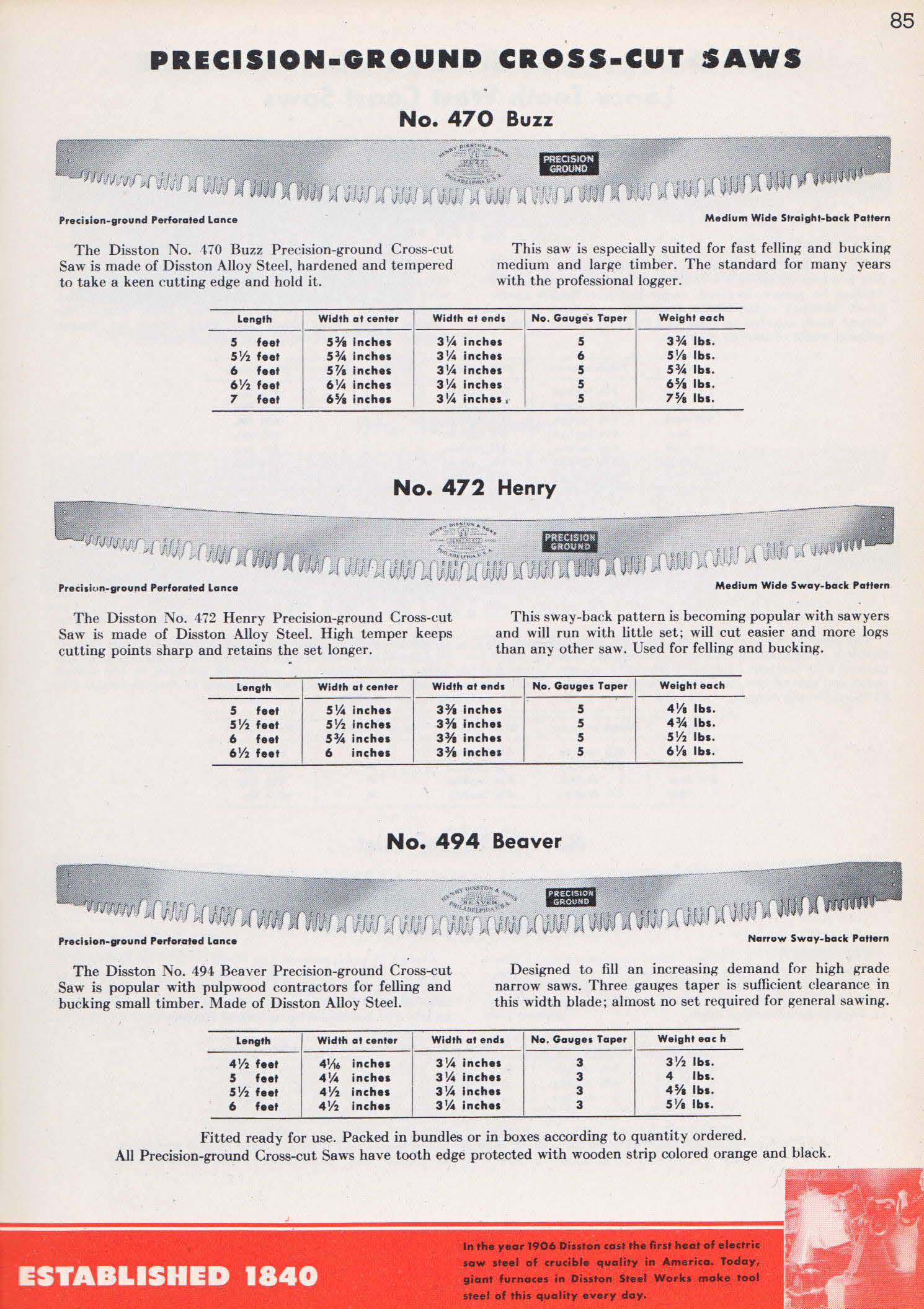

  21. Two Man Cross Cut Saws, Precision-Ground, Perforated Lance, Medium Straight-back
    No Catalog Name Length feet Width at Center inches Width at Ends inches Gauge Tooth Edge Gauge Back at Center Gauge at Ends Weight lbs
    470 1930 Buzz 5 5 3/8 3 1/4 -5 3 3/4
    5 1/2 5 3/4 3 1/4 -6 5 1/8
    6 5 7/8 3 1/4 -5 5 3/4
    6 1/2 6 1/4 3 1/4 -5 6 5/8
    7 6 5/8 3 1/4 -5 7 5/8
  22. Two Man Cross Cut Saws, Precision-Ground, Perforated Lance, Medium Sway-back
    No Catalog Name Length feet Width at Center inches Width at Ends inches Gauge Tooth Edge Gauge Back at Center Gauge at Ends Weight lbs
    472 1930 Henry 5 5 1/4 3 3/8 -5 4 1/8
    5 1/2 5 1/2 3 3/8 -5 5 1/2
    6 5 3/4 3 3/8 -5 5 1/2
    6 1/2 6 3 3/8 -5 6 1/8
  23. Two Man Tru-Curve Taper Ground Cross Cut Saws, Perforated Lance, Medium Wide Sway-back
    No Catalog Name Length feet Width at Center inches Width at Ends inches Gauge Tooth Edge Gauge Back at Center Gauge at Ends Weight lbs
    475 1930 Perforated Lance 5 5 1/4 3 3/8 -5 4
    5 1/2 5 1/2 3 3/8 -5 5 1/4
    6 5 3/4 3 3/8 -5 5 3/4
  24. Two Man Cross Cut Saws, Precision-Ground, Perforated Lance, Narrow Sway-back
    No Catalog Name Length feet Width at Center inches Width at Ends inches Gauge Tooth Edge Gauge Back at Center Gauge at Ends Weight lbs
    494 1930 Beaver 4 1/2 4 1/16 3 1/4 -3 3 1/2
    5 4 1/4 3 1/4 -3 4 5/8
    5 1/2 4 1/2 3 1/4 -3 5 1/8
    6 4 1/2 3 1/4 -3 5 1/8

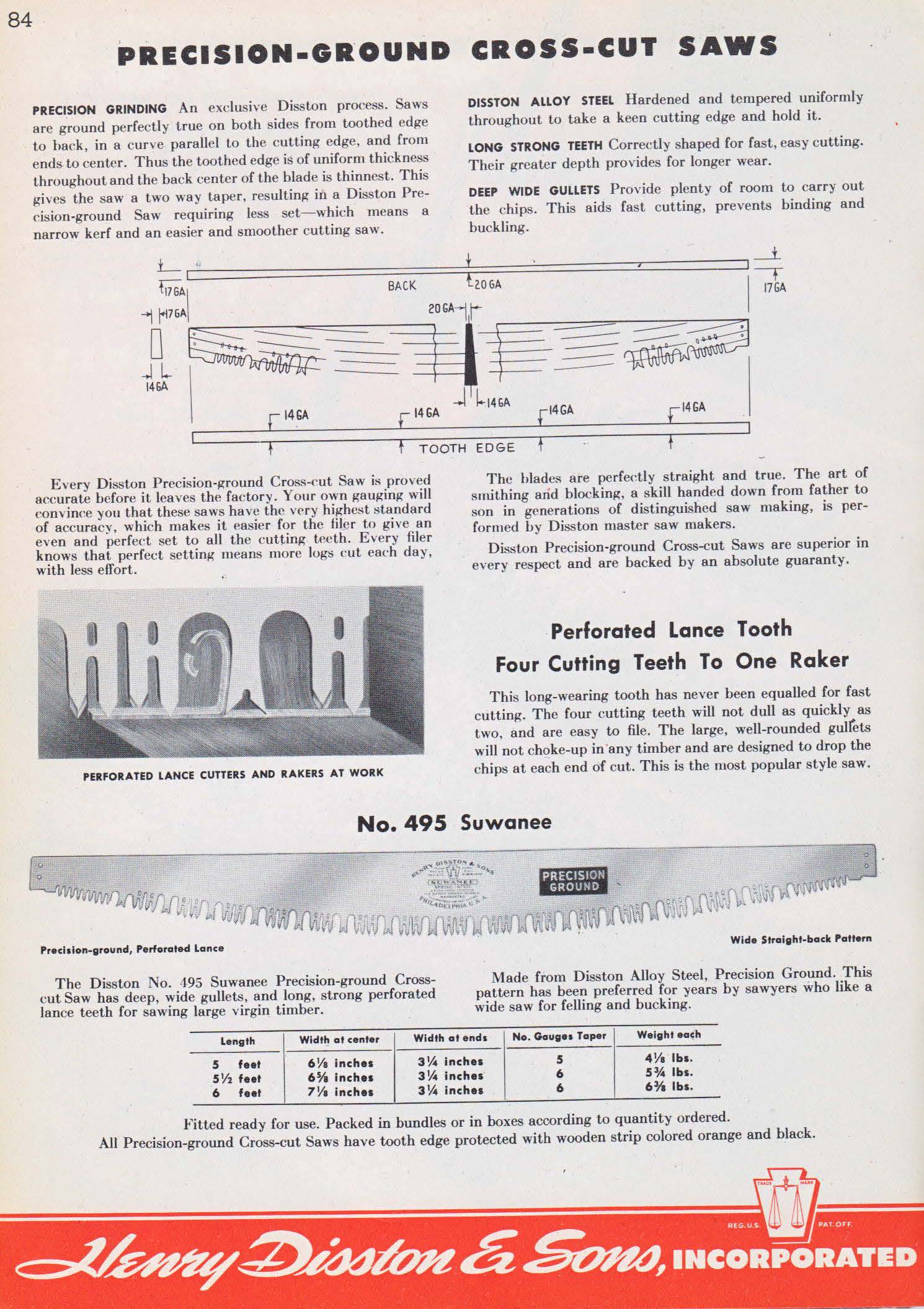

  25. Two Man Cross Cut Saws, Precision-Ground, Perforated Lance, Wide Straight-back
    No Catalog Name Length feet Width at Center inches Width at Ends inches Gauge Tooth Edge Gauge Back at Center Gauge at Ends Weight lbs
    495 1930 Suwanee 5 6 1/8 3 1/4 -5 4 1/2
    5 1/2 6 5/8 3 1/4 -6 5 3/4
    6 7 1/8 3 1/4 -6 6 3/8

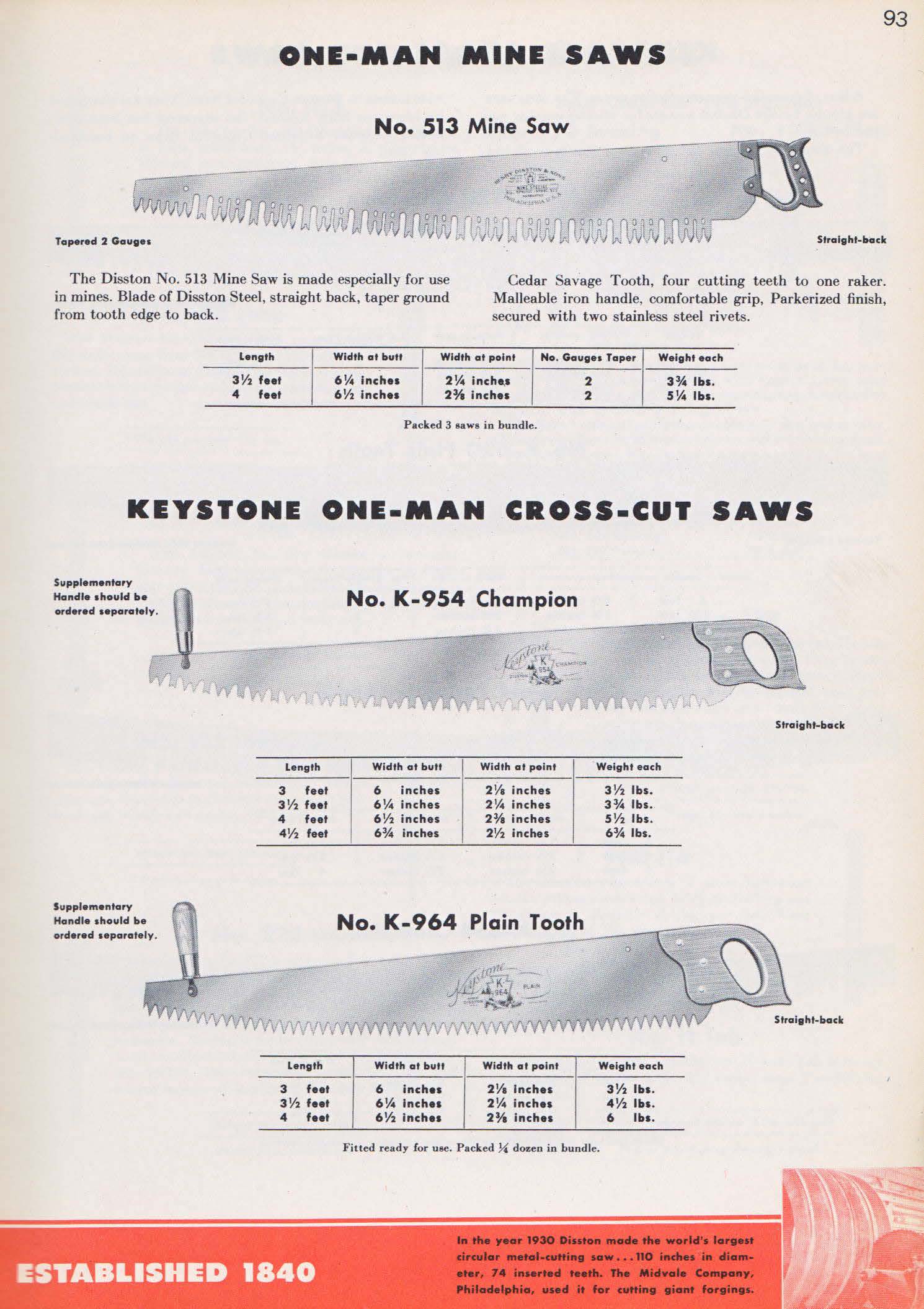

  26. One Man Saws
    No Catalog Name Length feet Width at Butt Inches Width at point Inches Gauge Tooth Edge Gauge at Back Gauge at Ends Weight lbs
    513 1930 Mine Saw 3 1/2 6 1/4 2 1/4 -2 3 3/4
    4 6 1/2 2 3/8 -2 5 1/4

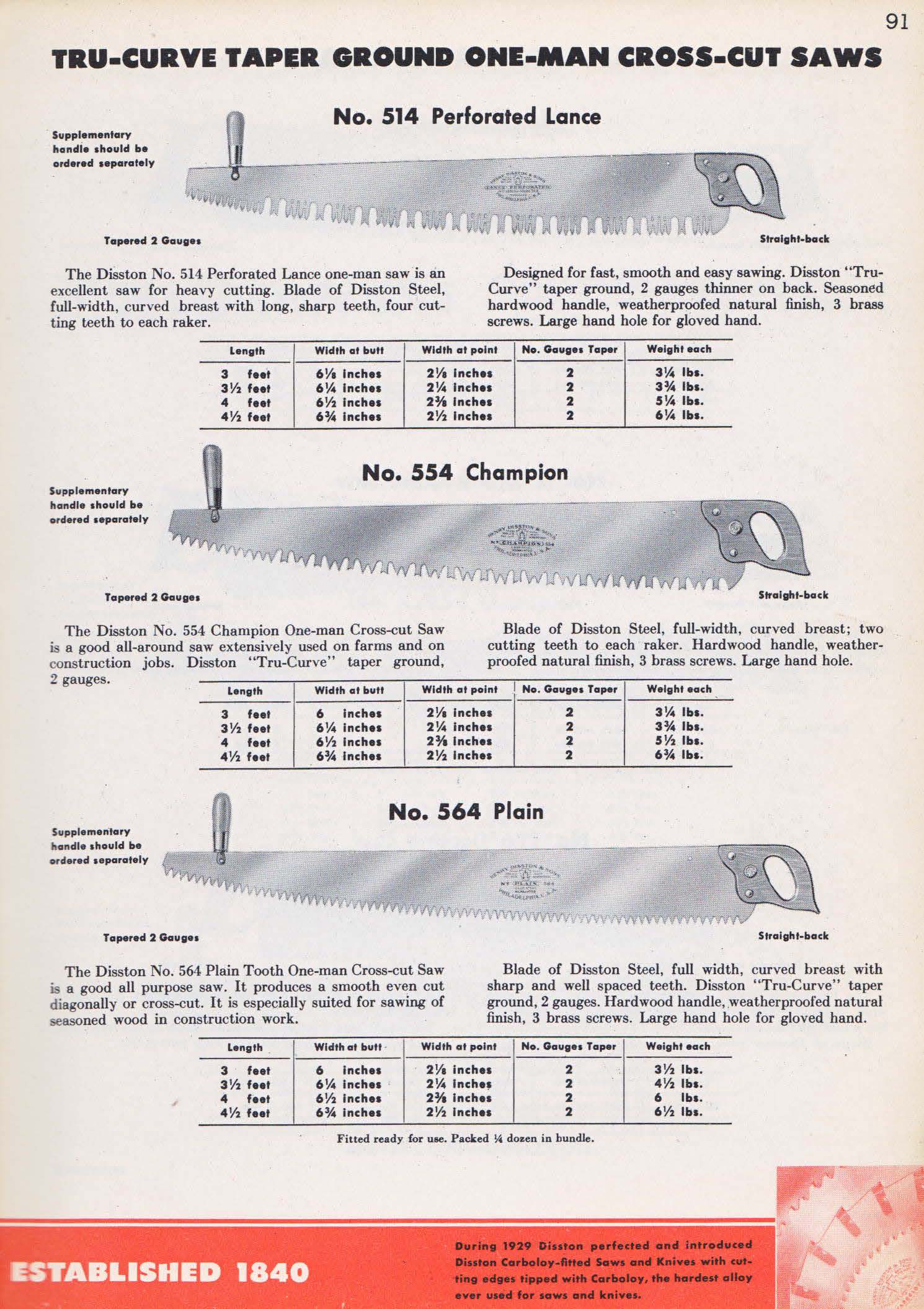

  27. One Man Tru-Curve Taper Ground Cross Cut Saws
    No Catalog Name Length feet Width at Butt Inches Width at point Inches Gauge Tooth Edge Gauge at Back Gauge at Ends Weight lbs
    514 1930 Perforated Lance 3 6 1/8 2 1/8 -2 3 1/4
    3 1/2 6 1/4 2 1/4 -2 3 1/4
    4 6 3/8 2 3/8 -2 5 1/4
    4 1/2 6 3/4 2 1/2 -2 6 1/4
  28. One Man Tru-Curve Taper Ground Cross Cut Saws
    No Catalog Name Length feet Width at Butt Inches Width at point Inches Gauge Tooth Edge Gauge at Back Gauge at Ends Weight lbs
    554 1930 Champion 3 6 2 1/8 -2 3 1/4
    3 1/2 6 1/4 2 1/4 -2 3 3/4
    4 6 1/2 2 3/8 -2 5 1/2
    4 1/2 6 3/4 2 1/2 -2 6 3/4
  29. One Man Tru-Curve Taper Ground Cross Cut Saws
    No Catalog Name Length feet Width at Butt Inches Width at point Inches Gauge Tooth Edge Gauge at Back Gauge at Ends Weight lbs
    564 1930 Plain 3 6 2 1/8 -2 3 1/2
    3 1/2 6 1/4 2 1/4 -2 4 1/2
    4 6 1/2 2 3/8 -2 6
    4 1/2 6 3/4 2 1/2 -2 6 1/2
  30. Two Man Cross Cut Saws, Precision-Ground, Perforated Lance, Medium Wide Sway-back
    No Catalog Name Length feet Width at Center inches Width at Ends inches Gauge Tooth Edge Gauge Back at Center Gauge at Ends Weight lbs
    712 1930 Timber Chief 5 1/2 5 1/2 3 3/8 -5 4 5/8
    6 5 3/4 3 3/8 -4 5 5/8
    6 1/2 6 3 3/8 -4 6 3/8
